TCT Circular Saw Blades for Wood
TCT Circular Saw Blades for wood1)It's designed for cutting both dry hard and soft wood, and also can be used to cut shaving board\wood fiber and joinery panel2)It has four reduce holes, so when it works, low noise3)we can according to your requests to make, or according you provide model.Packin......
Send Inquiry
Product Description

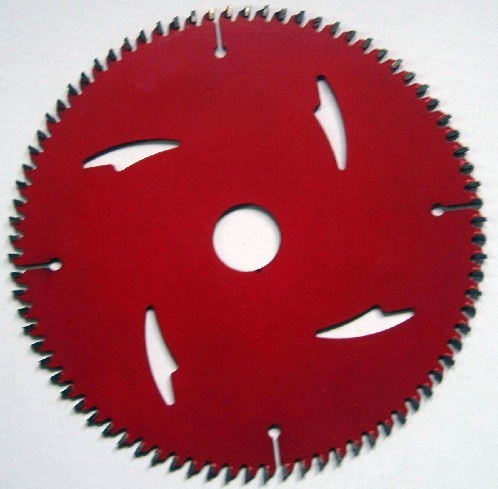

TCT Circular Saw Blades for wood
1)It's designed for cutting both dry hard and soft wood, and also can be used to cut shaving board\wood fiber and joinery panel
2)It has four reduce holes, so when it works, low noise
3)we can according to your requests to make, or according you provide model.
Packing detailes:
4" Meas: 54*27*31/200PCS. G. W: 18kgs, N. W: 17KGS
Specification

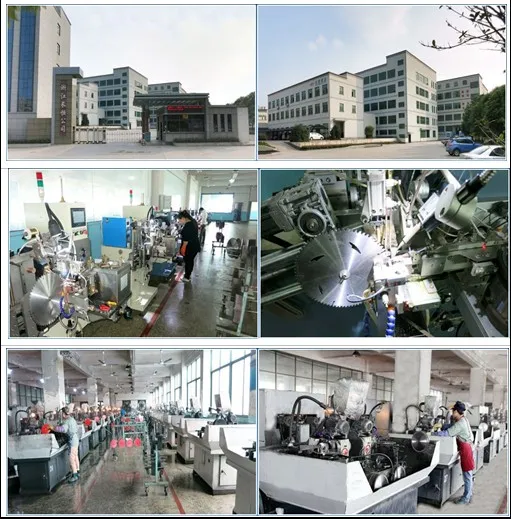

Factory Showing
1)It's designed for cutting both dry hard and soft wood, and also can be used to cut shaving board\wood fiber and joinery panel
2)It has four reduce holes, so when it works, low noise
3)we can according to your requests to make, or according you provide model.
Packing detailes:
4" Meas: 54*27*31/200PCS. G. W: 18kgs, N. W: 17KGS
Specification
| Order No. | Out Diameter | Body Thickness (mm) | Kerf (mm) | Hole Diameter (mm) | Teeth Number | |
| INCH | Metric | |||||
| CH-0025 | 4" | 110mm | 1.5 | 2.4 | 20 | 20T 30T 40T |
| CH-0026 | 5" | 125mm | 1.5 | 2.4 | 20 | 30T 40T 50T 60T |
| CH-0027 | 6" | 150mm | 1.5 | 2.4 | 20/25.4 | 30T 40T 50T 60T |
| CH-0028 | 7" | 180mm | 1.5 | 2.4 | 20/25.4 | 40T 50T 60T |
| CH-0029 | 8" | 200mm | 1.5 | 2.4 | 20/25.4 | 30T 40T 60T 80T 100T |
| CH-0030 | 9" | 230mm | 1.8 | 2.8 | 20/25.4 | 40T 60T 80T 100T |
| CH-0031 | 10" | 250mm | 2.0 | 3 | 20/25.4 | 40T 60T 80T 100T 120T |
| CH-0032 | 12" | 300mm | 2.1 | 3.2 | 25.4/30 | 40T 60T 80T 100T 120T |
| CH-0033 | 14" | 350mm | 2.4 | 3.4 | 25.4/30 | 40T 60T 80T 100T 120T |
| CH-0034 | 16" | 400mm | 2.5 | 3.6 | 25.4/30 | 40T 60T 80T 100T 120T |
| CH-0035 | 18" | 450mm | 3.0 | 3.6 | 25.4/30 | 40T 60T 80T 100T 120T |
| CH-0036 | 20" | 500mm | 3.0 | 3.8 | 25.4/30 | 40T 60T 80T 100T 120T |
