Tct Circular Saw Blade for Hard Wood 150-750mm
Carbide TCT Circular Saw Blade For Hard Wood CuttingMaterials:1. Carbide: Tungsten Carbide tip from Ceratizit, Luxemburg, KCR05/062. Saw body: Japan-imported steel plate SKS51, 75Cr1 from Grasche Group, Germany.3. Technology conducted by German expert,Quality up to the standard of German DIN54, DIN8......
Send Inquiry
Product Description

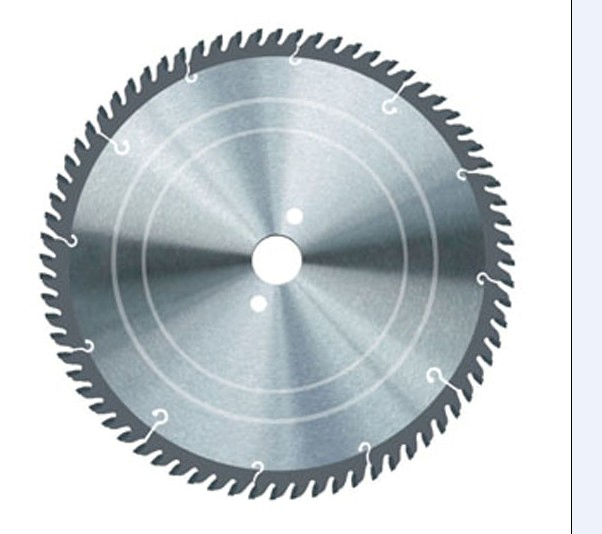

Carbide TCT Circular Saw Blade For Hard Wood Cutting
Materials:
1. Carbide: Tungsten Carbide tip from Ceratizit, Luxemburg, KCR05/06
2. Saw body: Japan-imported steel plate SKS51, 75Cr1 from Grasche Group, Germany.
3. Technology conducted by German expert,
Quality up to the standard of German DIN54, DIN8033.
Application:
Fine cross cut blades. Suitable for cross cutting softwood, hardwood, plywood, chip-board, multi-board, panels, MDF, plated&counted-plated panels, laminate&Bi-laminate, plastic and FRP. Providing a high degree of finish adge. Also can rip cut along the grain. Fit to sizing saws, table saws, crosscut saws.
Bore: Available all size and kind upon request, such as 5/8", 1", 20mm, 22.23mm, 25mm, 30mm, 35mm, ect.
Teeth: Teeth number could be adjusted upon request.
Hook angle: Could be adjusted upon request
Advantage:
1. Best aterial with advanced machines
2. Deformation will not happen after long time using.
3.15 years experience, free consult service
Notes:
1. For MOQ, we are flexible, it usually starts from 10 pcs.
2. Our stardard package is paper box, 20 pcs in one carton(36cm x 36cm x 28.5cm, 0.04CBM)
3. Your Logo and trademark can be put on the blades as requested.
Materials:
1. Carbide: Tungsten Carbide tip from Ceratizit, Luxemburg, KCR05/06
2. Saw body: Japan-imported steel plate SKS51, 75Cr1 from Grasche Group, Germany.
3. Technology conducted by German expert,
Quality up to the standard of German DIN54, DIN8033.
Application:
Fine cross cut blades. Suitable for cross cutting softwood, hardwood, plywood, chip-board, multi-board, panels, MDF, plated&counted-plated panels, laminate&Bi-laminate, plastic and FRP. Providing a high degree of finish adge. Also can rip cut along the grain. Fit to sizing saws, table saws, crosscut saws.
Bore: Available all size and kind upon request, such as 5/8", 1", 20mm, 22.23mm, 25mm, 30mm, 35mm, ect.
Teeth: Teeth number could be adjusted upon request.
Hook angle: Could be adjusted upon request
Advantage:
1. Best aterial with advanced machines
2. Deformation will not happen after long time using.
3.15 years experience, free consult service
Notes:
1. For MOQ, we are flexible, it usually starts from 10 pcs.
2. Our stardard package is paper box, 20 pcs in one carton(36cm x 36cm x 28.5cm, 0.04CBM)
3. Your Logo and trademark can be put on the blades as requested.
DiameteEF(mm) | KeEFEF,B/b | Teeth NumbeEF |
150 | 2.4/1.6,2.6/1.6 | 48,50,60 |
180 | 2.6/1.8,2.8/1.8 | 56,60,72 |
200 | 2.6/1.8,2.8/1.8 | 64,68,80 |
230 | 2.6/1.8,2.8/1.8 | 72,76,92 |
250 | 2.8/2.0,3.0/2.0 | 80,100,120 |
270 | 2.8/2.0,3.0/2.0 | 80,100,120 |
300 | 3.0/2.2,3.2/2.2 | 96,100,120,140 |
330 | 3.0/2.2,3.2/2.2 | 96,100,120,140 |
350 | 3.0/2.2,3.2/2.2 | 100,108,112,116,120,140 |
400 | 3.2/2.2,3.5/2.5 | 100,120,128,132,140 |
450 | 3.2/2.2,3.5/2.5 | 100,120,128,132,140 |
500 | 3.5/2.5,3.6/2.8 | 100,120,128,132,140 |
550 | 3.8/2.8,3.6/2.8 | 100,120,128,132,140 |
600 | 4.0/3.0 | 100,120,128,132,140,160 |
650 | 4.0/3.0 | 100,120,128,132,140,160 |
700 | 4.2/3.2 | 100,120,128,132,140,160 |
750 | 4.2/3.2,4.6/3.6 | 100,120,128,132,140,160 |
Other specification &sizes are available upon request | ||
