The concept and features of DC MCCB

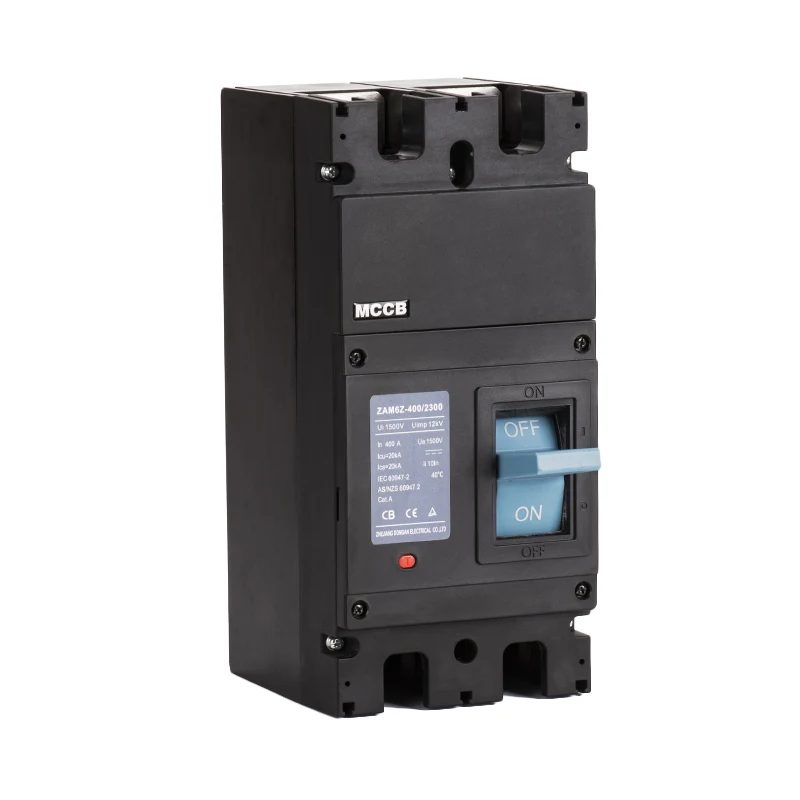

Concept and Features of DC MCCB (Molded Case Circuit Breaker)

Concept:

A DC MCCB (Direct Current Molded Case Circuit Breaker) is a type of electrical protection device designed to protect DC circuits from overcurrent, short circuits, and faults. Unlike AC MCCBs, DC MCCBs are specifically engineered to interrupt DC current, which lacks a natural zero crossing and can sustain arcs longer, making arc extinction more challenging.

Key Features of DC MCCBs:

DC Rating:

Designed for use in DC circuits with specified voltage and current ratings (e.g., 250VDC, 500VDC, 1000VDC).

Labeled clearly with DC voltage and interrupting capacity.

Arc Quenching Mechanism:

Advanced arc-extinguishing chambers using magnetic blow-out coils or arc chutes to suppress and extinguish the arc in DC circuits.

Typically more complex than AC MCCBs due to the lack of natural current zero in DC.

Polarity Sensitivity:

Some DC MCCBs are polarity sensitive, meaning the direction of current flow must match the marked terminals.

Others are non-polarized and can be installed in either direction, but this depends on the design.

Breaking Capacity (Interrupting Rating):

High interrupting capacity to safely disconnect high fault currents.

Usually specified in kA (kiloamperes).

Thermal and Magnetic Protection:

Thermal mechanism protects against prolonged overcurrent.

Magnetic mechanism (instantaneous trip) protects against short circuits.

Adjustability:

Some models allow adjustment of trip settings (current level and time delay), especially in higher-rated breakers.

Standards Compliance:

Must comply with standards like IEC 60947-2 for low-voltage circuit breakers and UL 489 if sold in the U.S.

Modular Accessories:

Can include auxiliary contacts, under-voltage trips, shunt trips, and remote control units.

Compact Design:

Molded case provides insulation and a compact form factor suitable for panel mounting.

Applications:

Solar PV systems

Battery banks

Electric vehicles

Data centers

Industrial control panels
