How Does Siemens 6ES7221-3BD30-0XB0 Enhance Industrial Automation?

Summary: Siemens 6ES7221-3BD30-0XB0 is a digital output module from the S7-1200 series designed for industrial automation systems. This article explores its features, applications, specifications, guiding engineers and technicians to leverage its advantages for flexible and high-speed signal control.

Table of Contents

• Overview of Siemens 6ES7221-3BD30-0XB0
• Key Features
• Applications in Industrial Automation
• Product Parameters
• Installation and Maintenance Tips
• Frequently Asked Questions
• Conclusion

Overview of Siemens 6ES7221-3BD30-0XB0

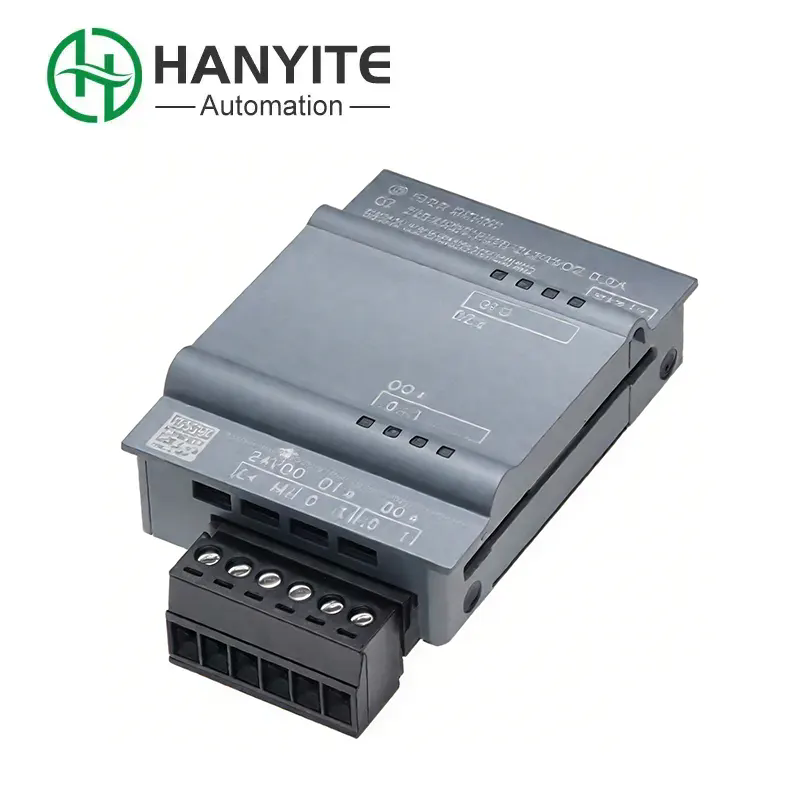

The Siemens 6ES7221-3BD30-0XB0 is an 8-channel digital output module (SM 1223) belonging to the S7-1200 series. It is designed to control up to eight external devices simultaneously, such as solenoid valves, contactors, and indicator lights. The module receives commands from the CPU and translates them into relay-controlled outputs, offering flexibility in both AC and DC load management.

Hanyite Automation supplies this module with high-quality assurance and responsive after-sales service, providing reliable solutions for industrial automation needs.

Key Features

• Eight Output Channels: Controls up to eight devices independently with relay outputs.
• Relay Output Technology: Physical relay contacts allow AC and DC load control, supporting varied industrial environments.
• Compact Design: Fits seamlessly beside the CPU on left or right using side clips.
• High-Speed Signal Handling: Suitable for encoder input, counting, and pulse detection applications.
• Cost-Effective I/O Expansion: Provides additional I/O points without large space requirements.
• Reliable Industrial Grade: Designed for 24V DC signal acquisition with NPN sensor compatibility.

Applications in Industrial Automation

The Siemens 6ES7221-3BD30-0XB0 module is versatile and applicable in numerous industrial scenarios:

1. High-Speed Pulse Detection: Ideal for encoder input and fast counting operations.
2. Actuator Control: Manages solenoid valves, motors, and indicator lights efficiently.
3. Standard Signal Acquisition: Compatible with 24V DC systems and NPN-type sensors or switches.
4. Cost-Effective I/O Expansion: Extends control capabilities without major changes to existing hardware.
5. Automation Systems: Enhances high-speed signal processing in compact industrial setups.

Product Parameters

Installation and Maintenance Tips

• Proper Mounting: Secure module using side clips next to the CPU for stable operation.
• Wiring Checks: Confirm correct AC/DC load connections to prevent damage.
• Regular Inspection: Periodically check relay contacts for wear and ensure proper functioning.
• Environmental Conditions: Keep module free from excessive dust, moisture, and high temperature.
• Firmware Updates: Use Siemens TIA Portal for updates to maintain optimal performance.

Frequently Asked Questions

Q1: Can Siemens 6ES7221-3BD30-0XB0 handle both AC and DC loads?

A1: Yes, the relay output design allows controlling both AC and DC devices, providing maximum flexibility for industrial automation systems.

Q2: How many devices can be controlled simultaneously?

A2: The module can control eight devices independently, ideal for small to medium-sized automation setups.

Q3: Is the module compatible with high-speed pulse signals?

A3: Absolutely. It supports encoder input and fast counting applications, making it suitable for high-speed signal processing.

Conclusion

The Siemens 6ES7221-3BD30-0XB0 digital output module is a reliable, high-performance component for industrial automation. With its flexible relay outputs, compact design, and compatibility with AC/DC loads, it significantly enhances automation efficiency and system reliability. Hanyite Automation ensures high-quality supply, quick delivery, and excellent after-sales support.

For further information or to place an order, contact us today and let our experts assist with your industrial automation needs.
