How Does a Surface Mount DPDP Signal Relay Improve Circuit Performance?
2026-05-14
Summary: Surface Mount DPDP (Double Pole Double Throw) Signal Relays are compact, efficient, and highly reliable components designed for modern electronic circuits. In this article, we explore what these relays are, how they operate, why they are preferred in advanced applications, and practical considerations for engineers and designers. KEYONG provides high-quality Surface Mount DPDP Signal Relays tailored to diverse industrial and commercial needs.
Table of Contents
- What is a Surface Mount DPDP Signal Relay?
- How Does it Work?
- Why Choose a Surface Mount DPDP Signal Relay?
- Applications in Electronics
- Selection Guide
- Frequently Asked Questions
- Conclusion

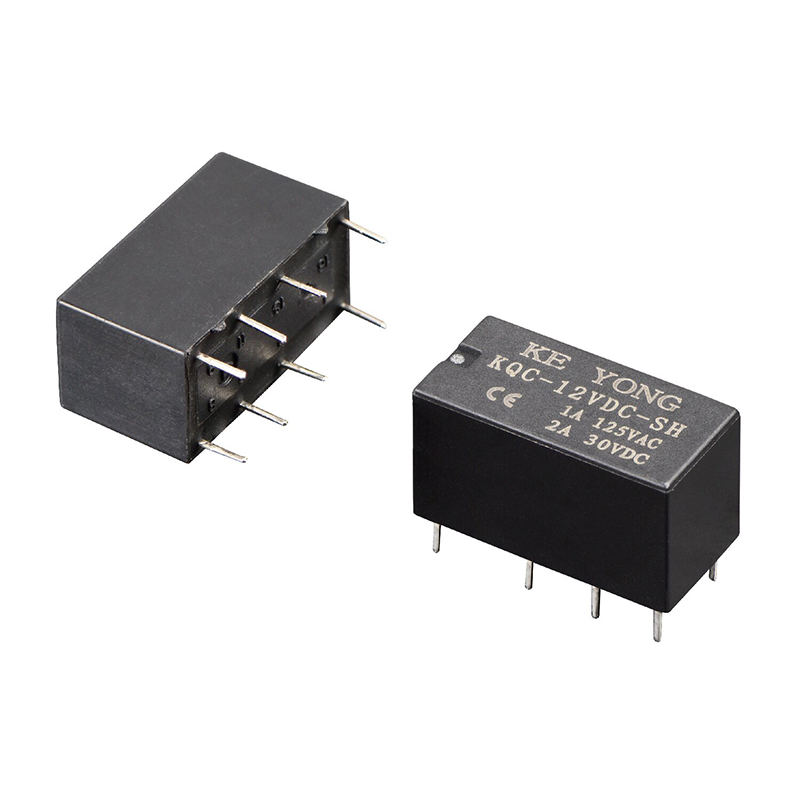

What is a Surface Mount DPDP Signal Relay?
A Surface Mount DPDP Signal Relay is an electromechanical switch that allows a single input to control multiple output circuits simultaneously. Unlike traditional relays, surface mount versions are designed for automated PCB assembly and compact electronic devices. The DPDP configuration ensures that both poles can switch between two output terminals, providing versatile routing and control options.
- Compact Form Factor: Fits modern PCB designs efficiently.
- High Reliability: KEYONG relays offer precise switching for thousands of cycles.
- Low Coil Power: Energy-efficient, reducing thermal impact on sensitive circuits.
Surface Mount DPDP Signal Relays are ideal for high-density boards where space optimization is critical. Their solder-friendly terminals allow quick and stable placement during mass production.
How Does it Work?
The working principle of a Surface Mount DPDP Signal Relay is straightforward yet sophisticated:
- Coil Activation: When the relay coil receives voltage, it generates a magnetic field.
- Switch Movement: The magnetic field moves the internal armature, connecting or disconnecting contact points.
- Dual Pole Action: Both poles of the relay simultaneously switch between their respective throw terminals, allowing multiple circuits to be controlled.
Here’s a simplified diagram to illustrate the switching logic:
| Input | Output A | Output B |
|---|---|---|
| Coil Off | NC (Normally Closed) | NC (Normally Closed) |
| Coil On | NO (Normally Open) | NO (Normally Open) |
The DPDP design ensures that two independent circuits can be simultaneously switched without interference, making it ideal for complex control systems.
Why Choose a Surface Mount DPDP Signal Relay?
Engineers and designers prefer Surface Mount DPDP Signal Relays for several reasons:
- Space Efficiency: Perfect for compact electronic devices and high-density PCB layouts.
- Durability: KEYONG relays are rated for high cycle counts and harsh environments.
- Flexibility: Supports multiple circuit configurations and easy integration.
- Low Noise Switching: Reduces interference in sensitive signal circuits.
Switching speed and reliability are critical in telecommunications, automation, and medical devices, where KEYONG relays excel.
Applications in Electronics
Surface Mount DPDP Signal Relays find use in numerous applications:
- Telecommunication Systems: Routing signals in high-speed networks.
- Industrial Automation: Controlling motors, solenoids, and sensors.
- Medical Devices: Ensuring precise signal control in diagnostic equipment.
- Consumer Electronics: Audio, video, and smart home devices.
KEYONG offers relays optimized for each of these applications, ensuring both performance and long-term reliability.
Selection Guide
Choosing the right Surface Mount DPDP Signal Relay requires attention to several technical parameters:
| Parameter | Recommended Consideration |
|---|---|
| Coil Voltage | Match the system voltage for reliable activation |
| Contact Rating | Ensure it meets the current and voltage requirements of the circuit |
| Switching Speed | High-speed relays reduce delay in signal transmission |
| Life Cycle | Choose relays with sufficient mechanical and electrical life for the application |
KEYONG provides datasheets and technical support to help select the optimal relay for each application.
Frequently Asked Questions
Q1: Can Surface Mount DPDP Relays handle high-current applications?
A1: These relays are primarily for signal-level currents, typically under 2A. For high-power circuits, consider a specialized power relay.
Q2: Are KEYONG relays RoHS compliant?
A2: Yes, all KEYONG Surface Mount DPDP Signal Relays meet global environmental and safety standards.
Q3: Can these relays be used in high-frequency switching?
A3: Absolutely. Their low coil power and precise contact design make them suitable for high-speed signal applications.
Conclusion
Surface Mount DPDP Signal Relays are compact, versatile, and reliable switches that significantly enhance circuit design efficiency. Whether for telecommunications, industrial automation, medical devices, or consumer electronics, these relays provide precise control and long-term reliability. KEYONG's extensive range ensures that engineers can find the perfect relay for their application. For detailed product information, purchasing options, and technical assistance, contact us today and experience the quality and innovation that KEYONG delivers.
