How Does a PCB Antenna Improve Wireless Device Performance?

2026-08-04

Article Summary:

PCB antennas have become an essential component in modern wireless devices because they provide compact size, reliable connectivity, and cost-effective integration. As electronic products continue to become smaller and smarter, manufacturers face challenges such as limited installation space, unstable signals, complex RF design requirements, and increasing production costs. This article explains how PCB antennas work, why they are widely used, how they solve common wireless communication problems, and what factors engineers should consider when selecting a suitable antenna solution. Shenzhen Qianmu Communication Technology Co., Ltd. provides professional PCB antenna solutions designed to meet different application requirements with stable performance and customized options.

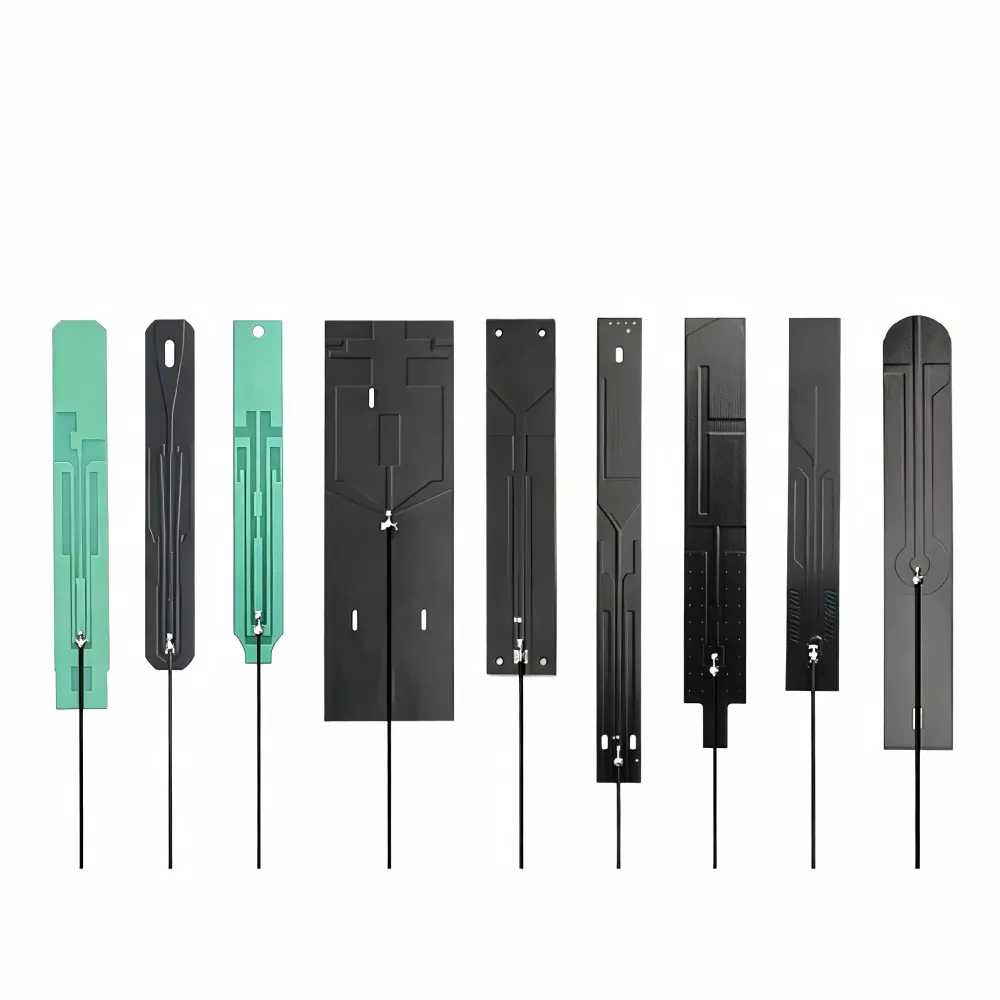

Rigid PCB Antenna

Article Outline


Introduction: The Growing Importance of PCB Antennas

Wireless communication technology has transformed the way people interact with electronic devices. From smart home equipment and wearable products to industrial monitoring systems and IoT terminals, stable wireless connectivity has become a basic requirement. Behind these applications, antennas play a critical role in transmitting and receiving radio frequency signals.

Traditional external antennas often require additional installation space and mechanical structures, which can increase product size and manufacturing complexity. With the continuous development of compact electronic devices, PCB antennas have become a preferred choice for many engineers because they can be directly integrated into printed circuit boards while maintaining efficient signal transmission.

A PCB antenna is a type of antenna structure printed or etched directly onto a circuit board. By combining antenna design with PCB manufacturing technology, companies can achieve better space utilization, simplified assembly processes, and improved product reliability.

Shenzhen Qianmu Communication Technology Co., Ltd. focuses on providing high-quality antenna solutions that help customers overcome wireless communication challenges. Through professional design experience and customized manufacturing capabilities, the company supports different industries requiring dependable RF performance.


How Does a PCB Antenna Work?

A PCB antenna operates by converting electrical signals generated by wireless circuits into electromagnetic waves and receiving electromagnetic waves from external sources back into electrical signals. Although the structure appears simple, the actual performance depends on many design elements, including antenna shape, material selection, frequency range, and surrounding components.

During operation, the RF circuit sends energy to the antenna through a transmission line. The PCB antenna then radiates this energy into space at a specific frequency. When another wireless device sends signals back, the antenna captures the electromagnetic waves and converts them into electrical signals that the receiver can process.

Different wireless technologies require different frequency ranges. For example, Bluetooth, Wi-Fi, GPS, LoRa, and cellular communication systems each have specific requirements. Engineers must carefully design the antenna structure to ensure stable performance within the target frequency band.

PCB Antenna Component Main Function
Radiation Element Generates and receives electromagnetic signals.
Transmission Line Transfers RF energy between the antenna and circuit.
Ground Plane Supports antenna radiation efficiency and impedance control.
PCB Material Provides mechanical support and affects signal performance.

A well-designed PCB antenna must achieve a balance between size, efficiency, bandwidth, and reliability. Poor antenna design may lead to weak signals, reduced communication distance, and unstable connections.


Key Advantages of Using PCB Antennas

PCB antennas are widely adopted because they provide multiple advantages compared with traditional antenna solutions. These benefits make them suitable for modern electronic products where space, cost, and performance are equally important.

  • Compact Design: PCB antennas occupy minimal space because they are integrated directly onto the circuit board. This makes them ideal for small electronic devices.
  • Cost Efficiency: Since PCB antennas can be manufactured during the PCB production process, additional antenna components and installation procedures can often be reduced.
  • High Reliability: Integrated structures reduce mechanical connections, improving durability and resistance to vibration or environmental changes.
  • Easy Mass Production: PCB antenna designs can be standardized and produced efficiently for large-scale manufacturing.
  • Customization Capability: Engineers can adjust antenna dimensions and structures according to specific product requirements.
Feature Traditional Antenna PCB Antenna
Installation Space Requires additional mounting area Integrated into PCB layout
Production Process Needs separate assembly Manufactured with PCB
Customization Limited by physical structure Flexible design options
Product Integration More complex Highly suitable for compact devices

Common Applications of PCB Antennas

The demand for wireless connectivity continues to expand across multiple industries. PCB antennas are used in various applications because they provide reliable communication performance while maintaining compact product designs.

  • Consumer Electronics: Smartphones, tablets, smart watches, Bluetooth devices, and wireless accessories commonly use PCB antennas.
  • Internet of Things (IoT): Smart sensors, connected meters, and intelligent control systems require compact antennas for continuous communication.
  • Automotive Electronics: Vehicle tracking systems, navigation equipment, and wireless control modules depend on stable antenna performance.
  • Industrial Equipment: Factory automation systems and remote monitoring devices use PCB antennas for data transmission.
  • Medical Devices: Portable healthcare equipment requires reliable wireless communication within limited device dimensions.

As more industries adopt wireless technology, PCB antennas continue to play an important role in improving device connectivity and user experience.


How to Choose the Right PCB Antenna?

Selecting the appropriate PCB antenna requires careful consideration of product requirements and operating conditions. Choosing an unsuitable antenna may result in poor signal quality, unstable communication, and unnecessary redesign costs.

Selection Factor Why It Matters
Frequency Range Ensures compatibility with wireless communication standards.
Available Space Determines antenna size and structural design.
Signal Environment Affects communication stability and interference resistance.
PCB Material Influences antenna efficiency and impedance performance.
Application Requirements Helps define performance expectations and customization needs.

Professional antenna suppliers can help optimize designs by analyzing product structure, frequency requirements, and application environments. Shenzhen Qianmu Communication Technology Co., Ltd. works closely with customers to develop suitable PCB antenna solutions that support different wireless communication scenarios.
